CPSC 330 Lecture 15: DBSCAN, Hierarchical Clustering

Super cool Demo!

You can download and checkout the Demo here.

All credit to Dr. Varada Kolhatkar for putting this together!

Recap: iClicker Exercise 15.3

Select all of the following statements which are True

• 1. If you train K-Means with n_clusters= the number of examples, the inertia value will be 0.
• 2. The elbow plot shows the tradeoff between within cluster distance and the number of clusters.
• 3. Unlike the Elbow method, the Silhouette method is not dependent on the notion of cluster centers.
• 4. The elbow plot is not a reliable method to obtain the optimal number of clusters in all cases.
• 5. The Silhouette scores ranges between -1 and 1 where higher scores indicates better cluster assignments.

iClicker Exercise 16.1

Select all of the following statements which are TRUE.

• 1. Similar to K-nearest neighbours, K-Means is a non parametric model.
• 2. The meaning of K in K-nearest neighbours and K-Means clustering is very similar.
• 3. Scaling of input features is crucial in clustering.

• 4. In clustering, it’s almost always a good idea to find equal-sized clusters.

Limitations of K-means

Shape of clusters

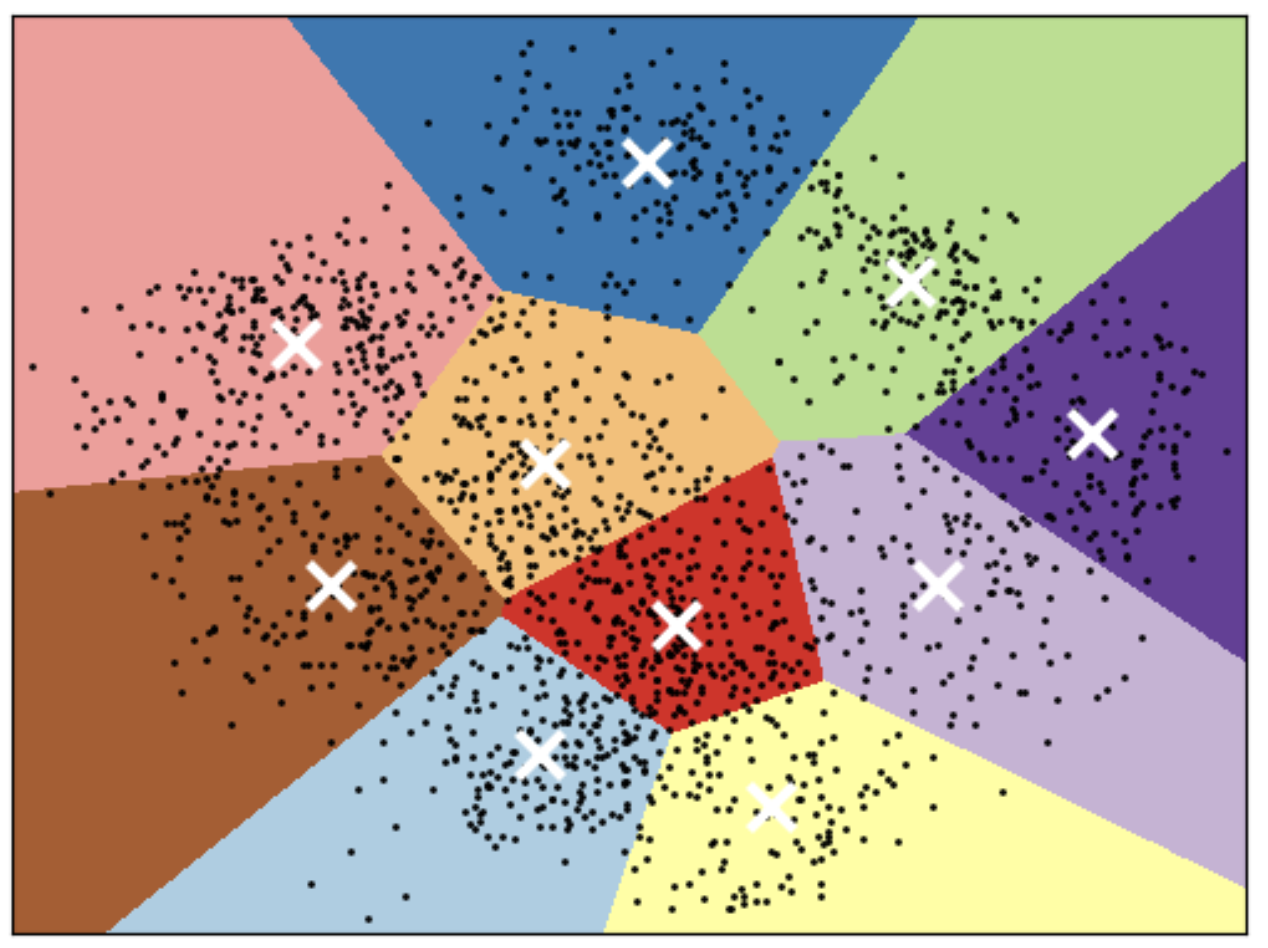

• Good for spherical clusters of more or less equal sizes

K-Means: failure case 1

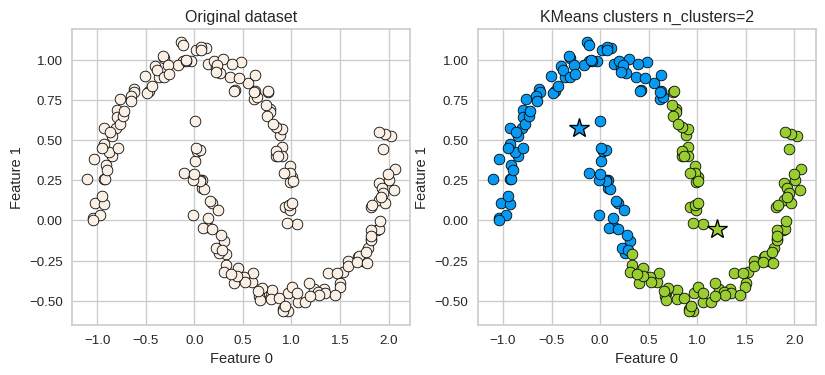

• K-Means performs poorly if the clusters have more complex shapes (e.g., two moons data below).

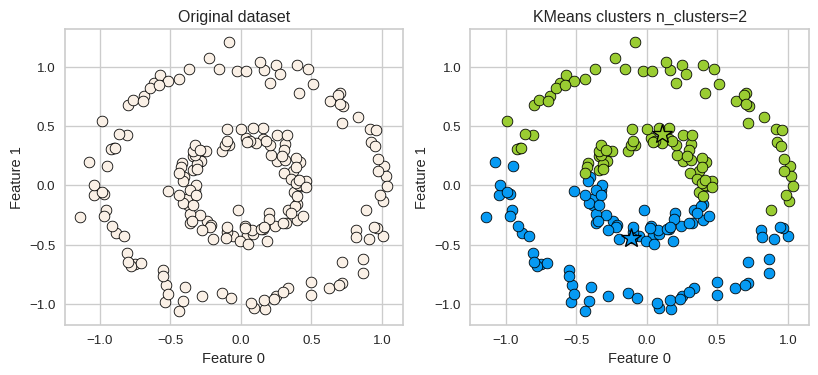

K-Means: failure case 2

• Again, K-Means is unable to capture complex cluster shapes.

K-Means: failure case 3

• It assumes that all directions are equally important for each cluster and fails to identify non-spherical clusters.

Can we do better?

DBSCAN

• Density-Based Spatial Clustering of Applications with Noise
• A density-based clustering algorithm

DBSCAN

X, y = make_moons(n_samples=200, noise=0.08, random_state=42)
dbscan = DBSCAN(eps=0.2)
dbscan.fit(X)
plot_original_clustered(X, dbscan, dbscan.labels_)

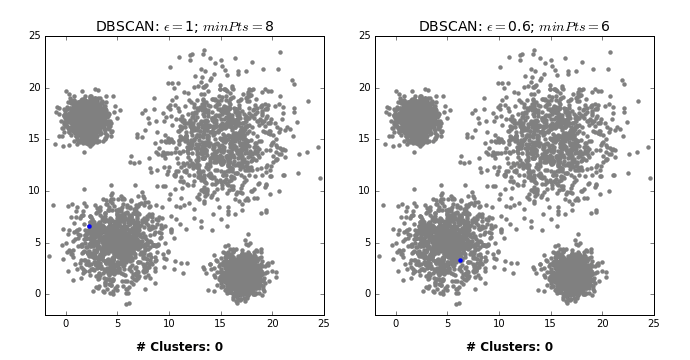

How does it work?

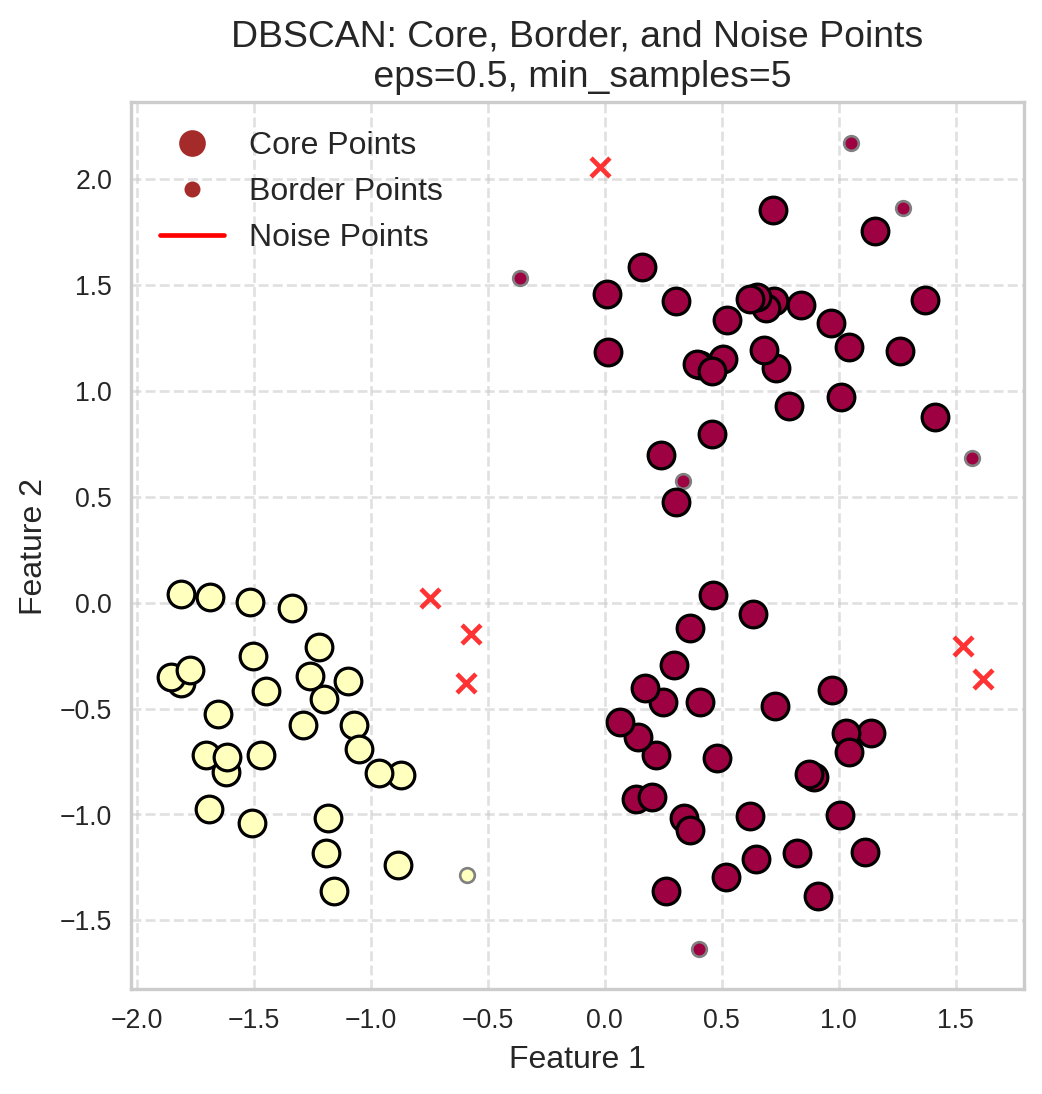

DBSCAN Analogy

Consider DBSCAN in a social context:

• Social butterflies (🦋): Core points
• Friends of social butterflies who are not social butterflies: Border points
• Lone wolves (🐺): Noise points

Two main hyperparameters

• eps: determines what it means for points to be “close”
• min_samples: determines the number of neighboring points we require to consider in order for a point to be part of a cluster

DBSCAN: failure cases

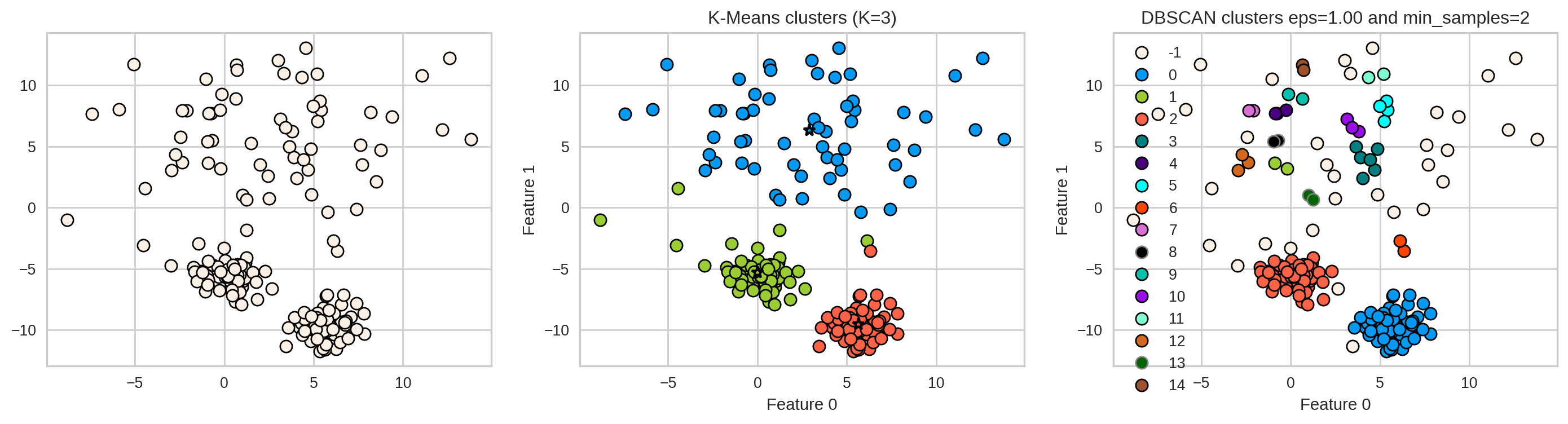

• Let’s consider this dataset with three clusters of varying densities.

• K-Means performs better compared to DBSCAN. But it has the benefit of knowing the value of K in advance.

[ 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15]

Break

Let’s take a 10-min break!

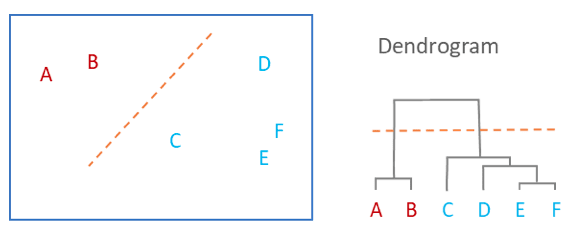

Dendrogram

Definition: visual representation of a tree, in particular, the hierarchical representation of data…

Source

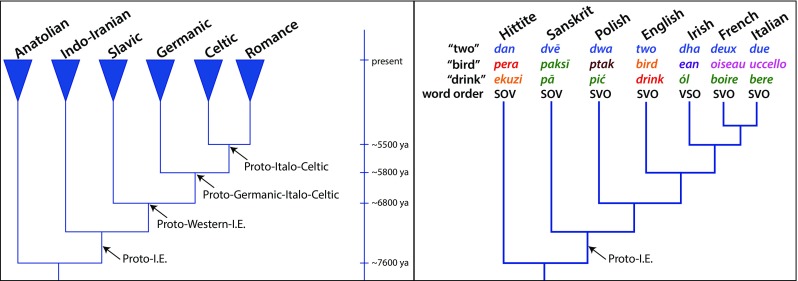

Example: Languages

Source

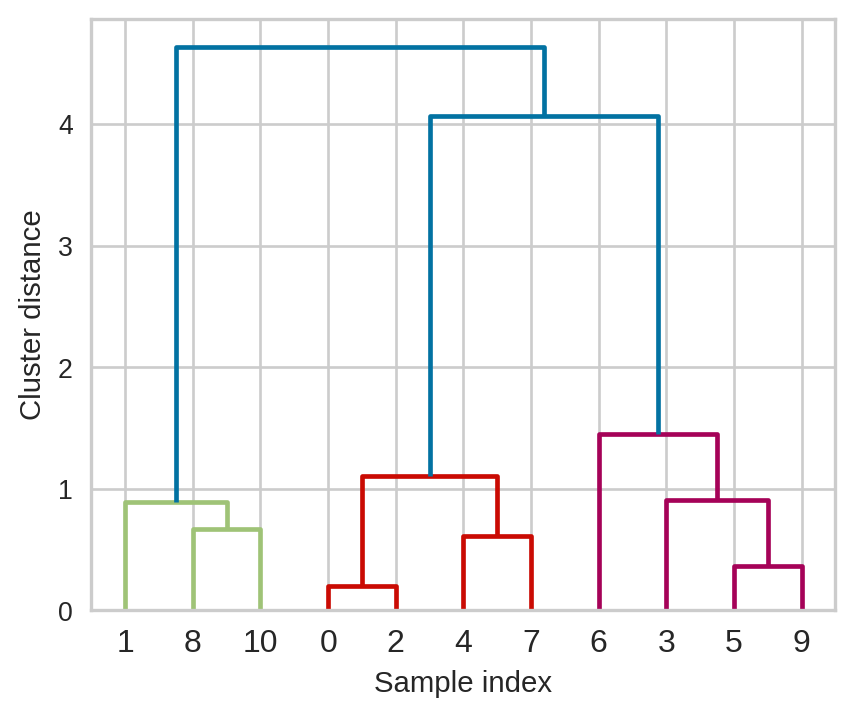

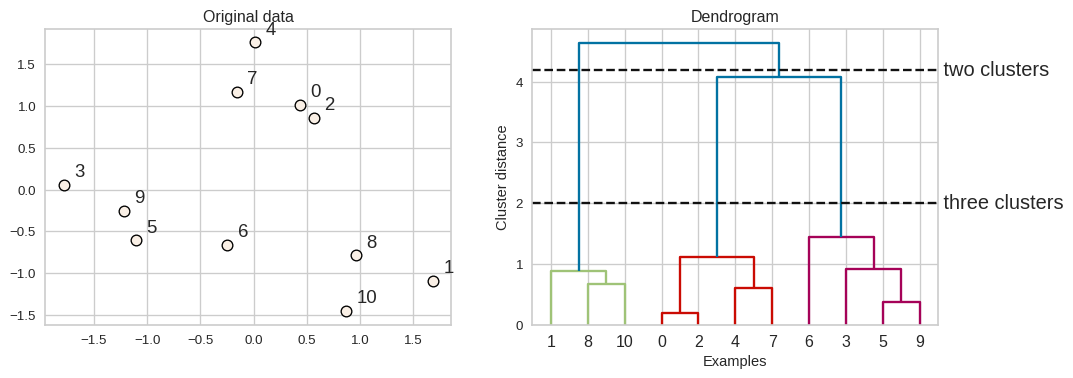

Hierarchical clustering

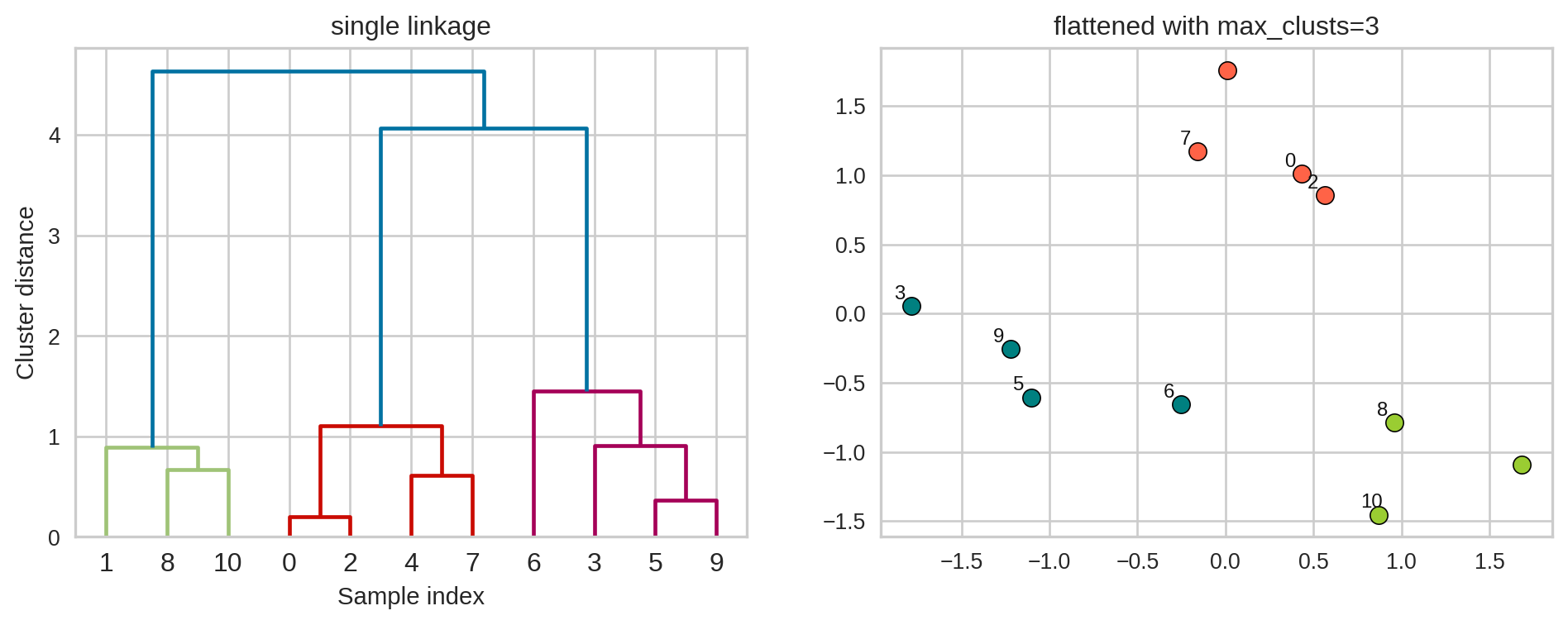

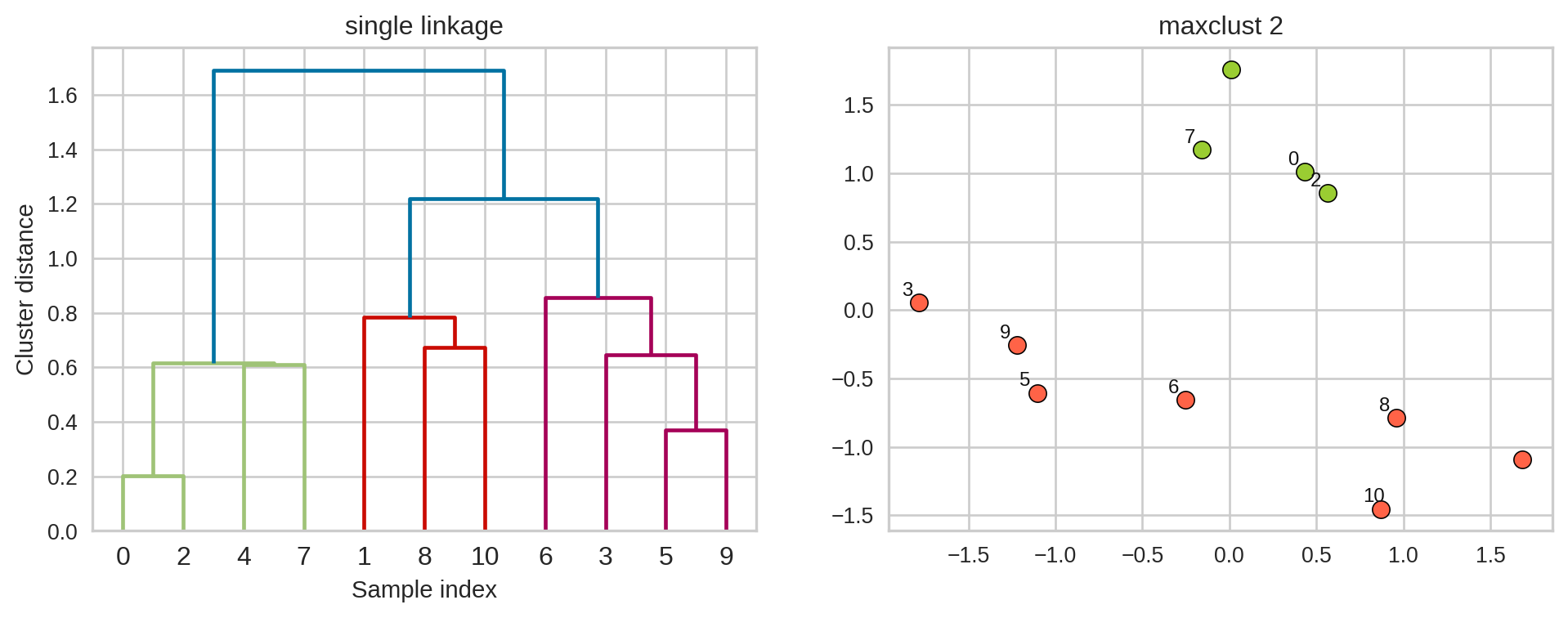

Flat clusters

• This is good but how can we get cluster labels from a dendrogram?
• We can bring the clustering to a “flat” format use fcluster

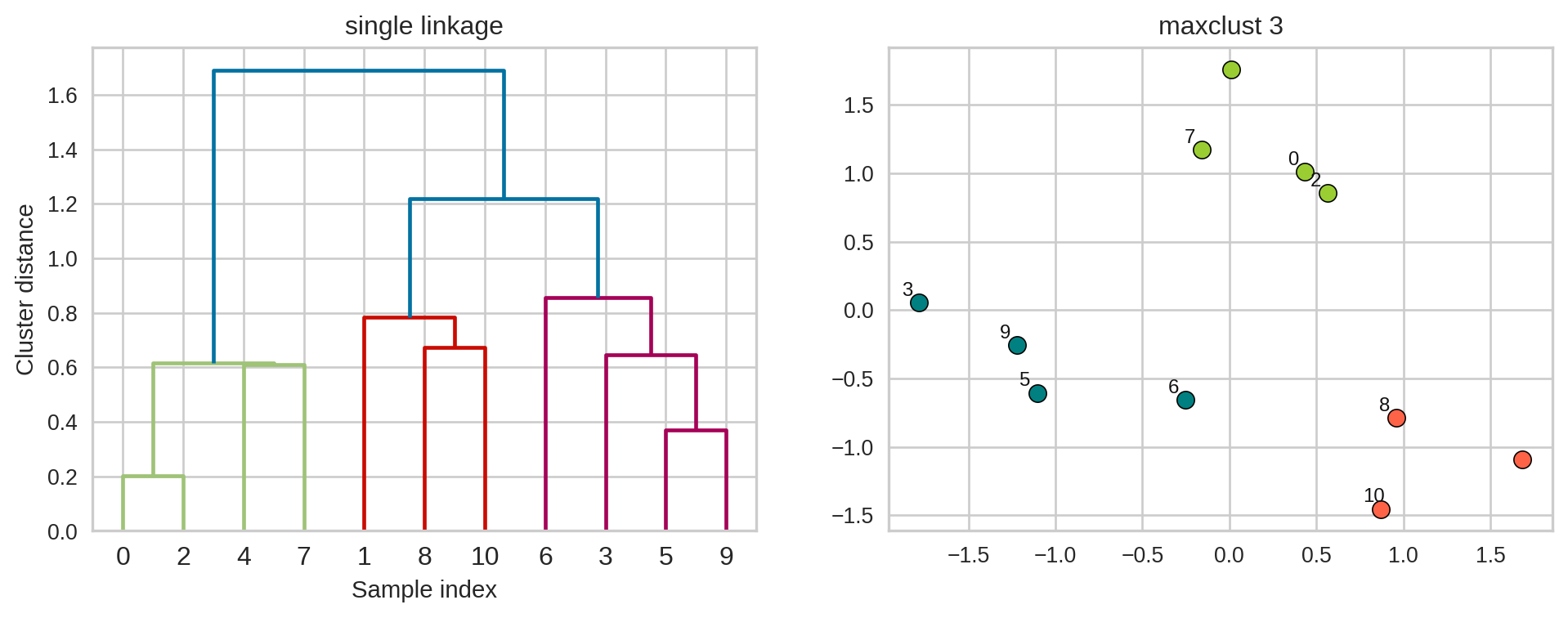

Linkage criteria

• When we create a dendrogram, we need to calculate distance between clusters. How do we measure distances between clusters?
• The linkage criteria determines how to find similarity between clusters:
• Some example linkage criteria are:
  • Single linkage → smallest minimal distance, leads to loose clusters
  • Complete linkage → smallest maximum distance, leads to tight clusters
  • Average linkage → smallest average distance between all pairs of points in the clusters
  • Ward linkage → smallest increase in within-cluster variance, leads to equally sized clusters

Activity

• Fill in the table below

Clustering Method	KMeans	DBSCAN	Hierarchical Clustering
Approach
Hyperparameters
Shape of clusters
Handling noise
Examples
